Laser Cutting 激光切割加工

Advantages of Laser Cutting:

⑴ High-Quality Cuts

Due to the laser’s small spot size, high energy density, and fast cutting speed, laser cutting delivers superior cut quality.

⑵ High Cutting Efficiency

Because of the laser’s transmission characteristics, laser cutting machines are typically equipped with multiple CNC workstations, allowing the entire cutting process to be fully CNC-controlled. During operation, simply modifying the CNC program allows for the cutting of parts of various shapes, enabling both 2D and 3D cutting.

⑶ High cutting speed

When cutting 2mm-thick low-carbon steel plate with a 1200W laser, the cutting speed can reach 600 cm/min; when cutting 5mm-thick polypropylene resin sheet, the cutting speed can reach 1200 cm/min. Materials do not require clamping or fixing during laser cutting, which saves on tooling and fixtures while reducing auxiliary time for loading and unloading.

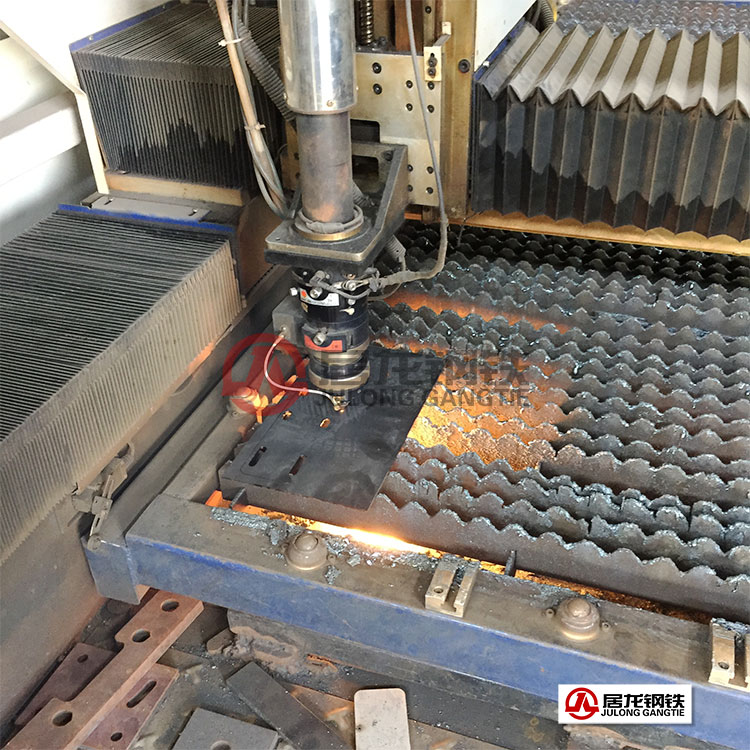

⑷ Non-contact cutting

During laser cutting, the cutting head does not come into contact with the workpiece, eliminating tool wear. Processing parts of different shapes does not require changing “cutting tools”; only the laser’s output parameters need to be adjusted. The laser cutting process is low-noise, low-vibration, and pollution-free.

激光切割的优点：
