Steel Plate Edge Milling 钢板铣边加工

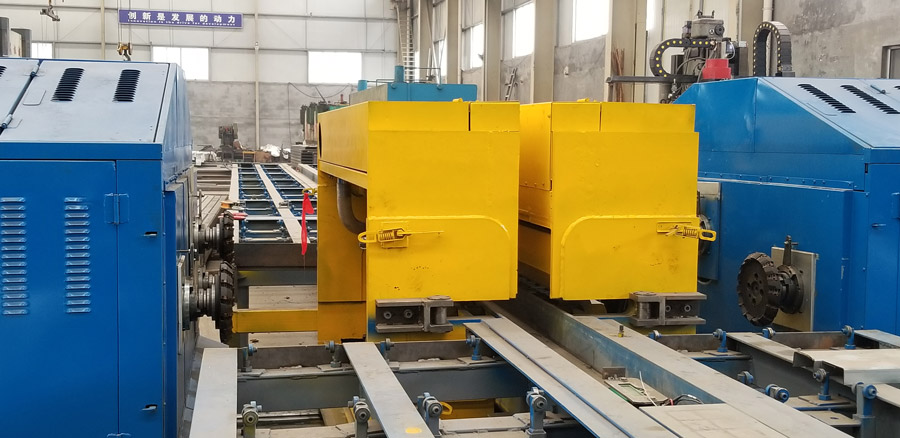

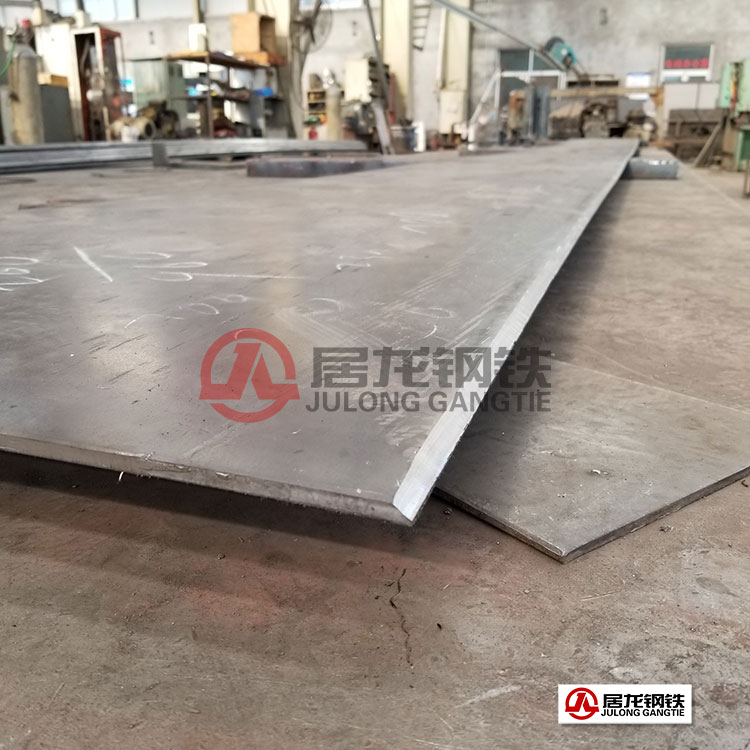

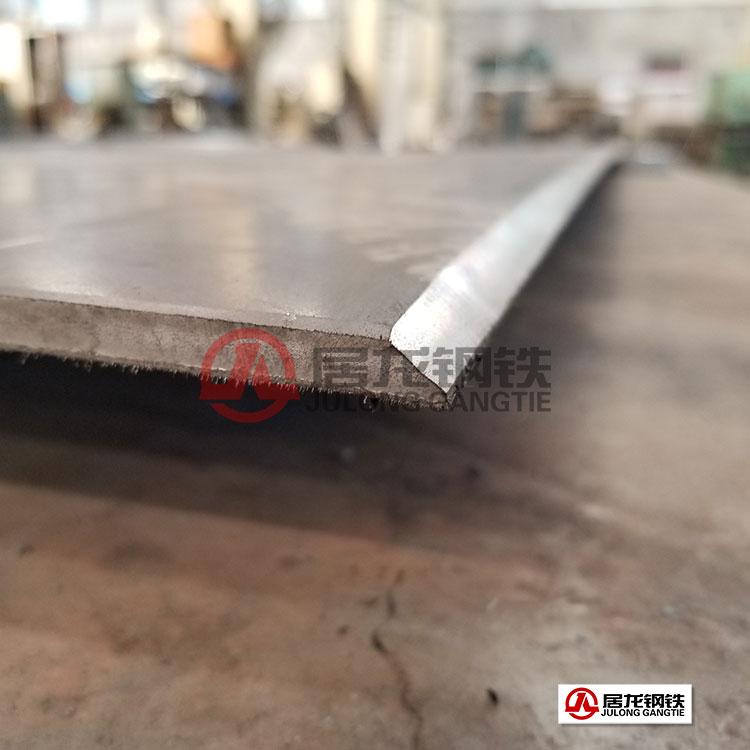

Steel Plate Edge Milling Services: Juluong Steel’s proprietary CNC beveling and edge milling machine can complete beveling, undercutting, and chamfering on one end and both long edges of a plate in a single loading operation. Equipped with China’s most advanced CNC system, the machine’s milling units automatically advance and lock into position based on input parameters to perform edge milling. It offers high processing efficiency with speeds exceeding 10 m/min, achieving straightness of ≤0.5 mm/10,000 mm, width accuracy of ≤0.5 mm, and a groove surface roughness of Ra ≤12.5 μm. The machine features a high degree of automation, with functions such as sheet positioning, feeding, bevel angle adjustment, cutting precision control, machine clamping, heat dissipation and chip removal, as well as loading and unloading, all controlled via CNC automation. This machine model can process various groove types—including I, V, K, and U—without changing the cutter head. It revolutionizes the cutting methods of traditional equipment such as edge planers and edge milling machines, not only significantly improving efficiency but also fully meeting the industry standards for roughness and straightness in single-pass forming and metal cutting.

钢板铣边加工服务，居龙钢铁自主研制数控坡口铣边机一次上料，即可完成板料一端边及两长边上坡口、下坡口及钝边加工。拥有国内最先进数控系统，根据输入参数，主机各铣削单元进刀、锁紧到位，自动将板料进行铣边加工，加工效率高，加工速度高达10m/min以上，加工板料直线度≤0.5mm/10000mm，加工板料宽度精度≤0.5mm，坡口表面粗糙度Ra≤12.5um。自动化程度高，板料定位、进给、坡口角度调整、切削精度控制、主机锁紧、散热排屑、上料出料等功能均实现数控自动化控制。该机型无需更换刀盘，即可实现I、V、K、U等不同坡口形式的加工。改变了刨边机、铣边机等传统设备切削方式，不仅大幅度提高了功效，并且完全达到一次成型和金属切割行业标准的粗糙度和直线度的要求。

居龙钢铁对外承接各类中厚板、卷板的铣边服务，欢迎来电咨询洽谈合作。

Address: No. 100 Shougang Street, Manzhuang Steel Market, Tai'an City, Shandong Province

Phone: +86-16575198888 (also on WeChat)

+86-538-8797999

Email: julonggangtie@126.com

厂址：山东省泰安市满庄钢材大市场首钢大街100号

电话：+86-16575198888（微信同号）   +86-538-8797999

QQ：1962201541（微信同号）

邮箱：julonggangtie@126.com
