Export processing of U-shaped hook lift bins using NM450 wear-resistant plate. U型废固箱出口加工 采用NM450耐磨板

U-shaped hook lift bins Product Description

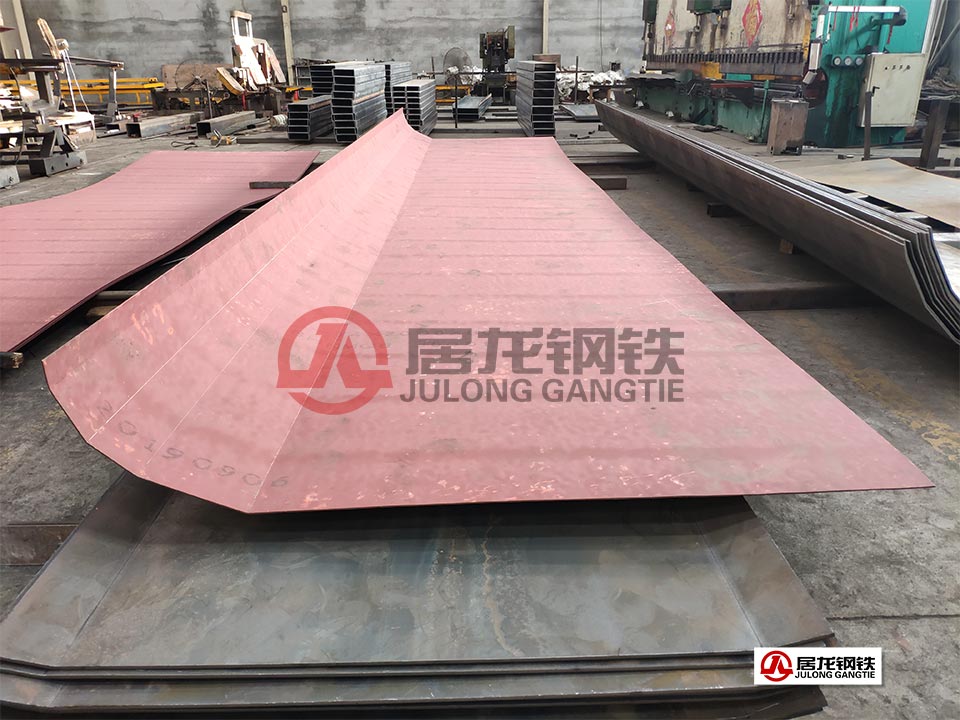

◆ The side panels of the enclosure are made from Baosteel NM450 wear-resistant plate and are formed in a single bending process, resulting in an aesthetically pleasing and highly durable structure.

◆ Through careful design calculations, each bend is set at a different angle to enhance the overall strength of the steel plate.

◆ The container features a modular design to accommodate diverse customer needs; dimensions (length and width) and material thickness can be quickly optimized.

◆ Utilizing SolidWorks modeling, we can flexibly design and rapidly customize production to meet specific customer requirements.

U型废固箱产品介绍
◆箱体侧板为宝钢NM450耐磨板一次性折弯成型，整体美观，强度高。
◆通过合理的设计计算，每次折弯角度不同，以达到提高钢板整体强度的目的。
◆箱体整体采用模块化设计，以满足不同客户需求，箱体长宽尺寸，材料厚度，都可以快速优化设计。
◆通过SolidWorks建模设计，可以灵活根据客户不同要求，快速设计定制加工。

Features of U-Shaped Hook-Lift Bins

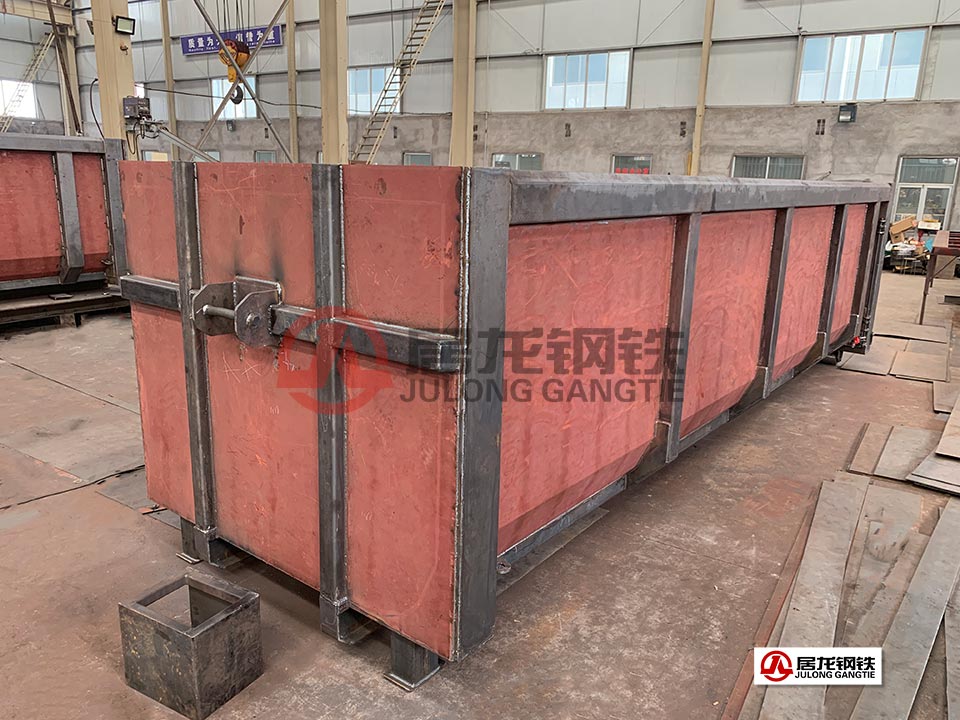

1. The bin body is fabricated by bending and welding NM450 wear-resistant steel plates and 700L high-strength steel plates.

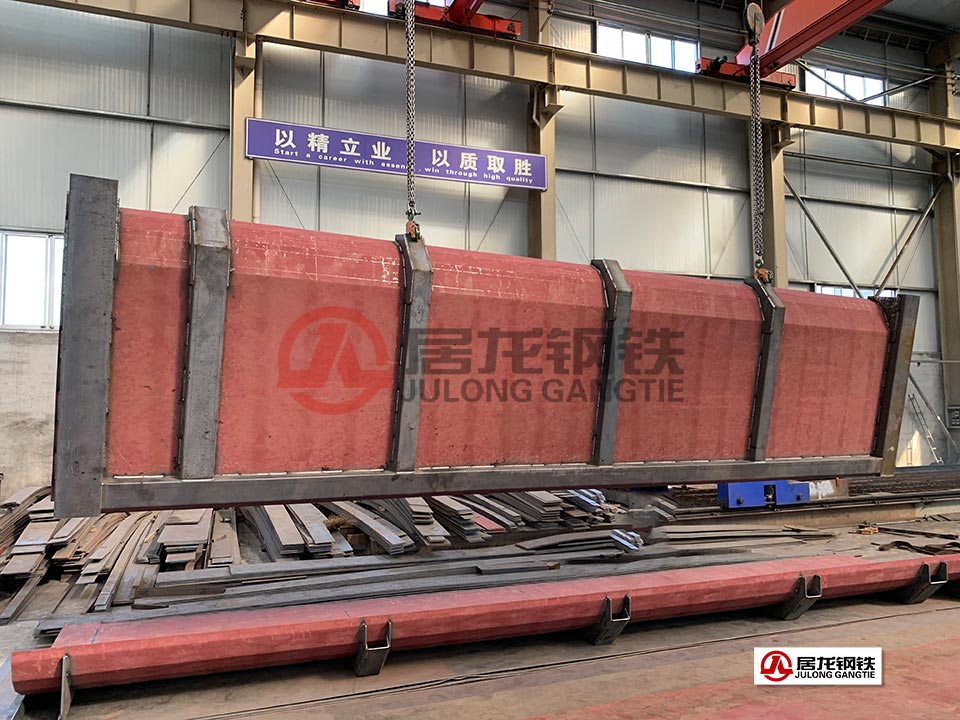

2. The entire bin body is constructed from just three solid pieces of wear-resistant steel plate, resulting in an aesthetically pleasing design, high strength, and light weight.

3. The interior of the bin has no horizontal or vertical ribs, preventing material buildup.

U型废固箱特点
一、箱体采用耐磨板NM450与高强板700L通过折弯焊接加工而成。
二、整个箱体仅用三张整块耐磨钢板加工而成，外形美观、强度高、自重轻。
三、箱内侧无任何横、竖筋，不积料。

The chassis serves as the foundation of the entire U-shaped container; the front and rear panels, side panels, and bottom panel are all secured in place by the chassis. The chassis functions to support and connect the various components of the solid waste container and to withstand various loads from both inside and outside the container. Therefore, the static and dynamic characteristics of the chassis form the basis for its structural design, improvement, and optimization, and are one of the key factors in ensuring the container’s excellent performance. We performed finite element static analysis on the chassis structure to verify its strength and stiffness. Through continuous optimization of the analysis data, the strength and stiffness of this chassis now fully meet the requirements of the Japanese market.

箱体车架是整个U型废固箱的基体，箱体前后板、侧板及底板都是通过车架来固定其位置的。车架的功用是支撑连接废固箱的各零部件，并承受来自箱体内外的各种载荷。因此，车架的静、动态特性是其结构设计、改进和优化的依据，是确保箱体性能优良的关键因素之一。我们对车架结构进行有限元静态分析，从而校核了车架的强度和刚度。通过不断优化分析数据，该车架的强度和刚度已经完全满足日本市场要求。

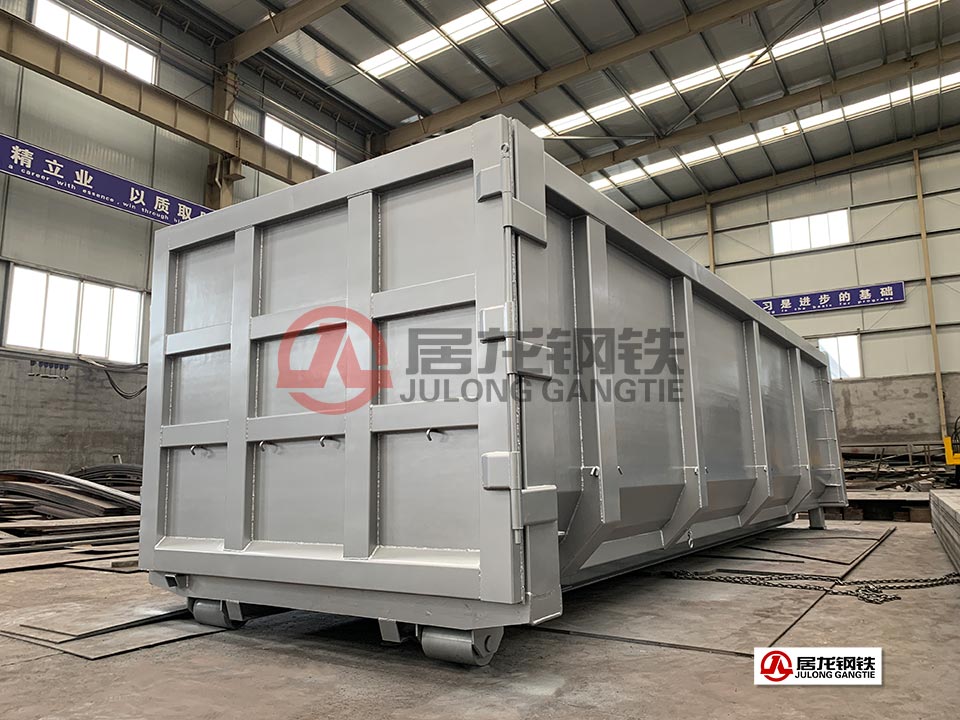

Our first-generation U-shaped container products have already been well-received by our Japanese customers, and we are currently designing and refining our second-generation products. Compared to the first generation, the second generation features greater structural strength and a more optimized design.

我们第一代U型废固箱产品已经得到了日本客户的认可，我们第二代产品正在设计改进中。相比第一代产品来说，第二代在结构上强度更强，结构更加优化。
